CNC Wood Router
Custom tables on request

Price Guide P & F-Series :
Complete Table & Accessories

P100
P500
P1000
P1500
R85 000.00

Table Cutting Size:
900 x 600mm
R91 000.00

Table cutting size:
1225mm x 1225mm
R110 000.00

Table cutting size:
1225 x 2460mm
R118 000.00

Table cutting size:
1500mm x 3000mm
F100 Pro
R85 000.00

Table Cutting Size:
600 x 900mm
Description: Ball Screw Gantry Table
Detailed information here...

  • Prices valid until end of January 2016 subject to change without notice
  • Prices as is, no VAT charges
  • Price for complete Table & Accessories - as described below
  • Click here for a Gantry Starting Kit only with no accessories.

Included in the Price

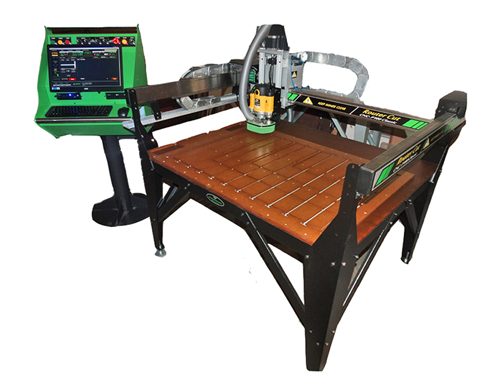

☑ The Rack & Pinion Gantry Table - P Series

  • Strong Table construction made from mild steel and powder coated.
  • All other sections are zink plated.
  • Parts are laser cut, bend and made in Port Elizabeth.
  • Complete assembly by bolts and nuts no welding
  • Rack and pinion X and Y movement at +_0.05mm increments .
  • Ball screw 16mm shaft Z axis with movement from 0 to 140mm
  • XYZ steppers motors NEMA23 torque 250 oz.in
  • X&Y max rapid speed of 7000mm/minute.
  • Stepper motor driver include for XYZ
  • Breakout board for parallel printer port with cable.
  • Switch mode power supply 36V 11amp
  • Motor cable, Limits, Home and Z-puck auto zero switches included.

☑ The Ball Screw Gantry Table - F Series

  • Strong Table construction made from mild steel and powder coated.
  • All other sections are zink plated.
  • Parts are laser cut, bend and made in Port Elizabeth.
  • Complete assembly by bolts and nuts no welding
  • Ball Screw 20mm shaft X and Y movement at +_0.013mm increments.
  • Ball screw 16mm shaft Z axis with movement from 0 to 120mm (with +_0.013mm increments)
  • XYZ steppers motors NEMA23 torque 250 oz.in
  • X&Y max rapid speed of 3000mm/minute.
  • Stepper motor driver include for XYZ
  • Breakout board for parallel printer port with cable.
  • Switch mode power supply 36V 11amp
  • Motor cable, Limits, Home and Z-puck auto zero switches included.

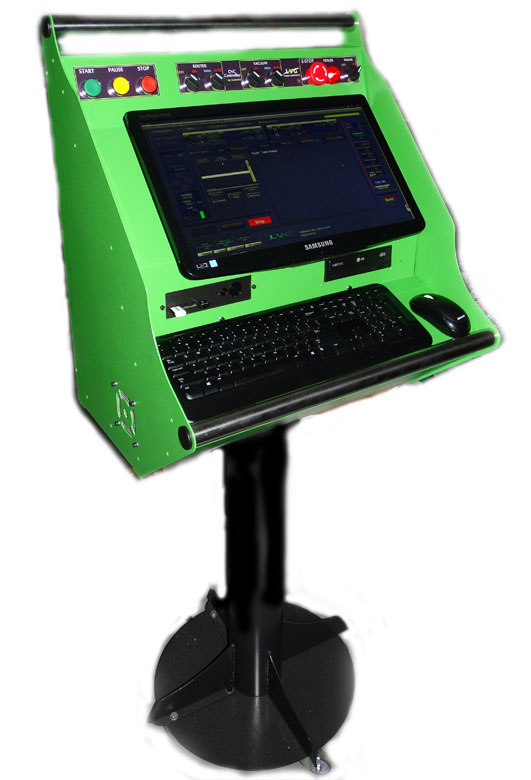

☑ Computer

  • Computer with 19inch LCD Screen
  • 2x printer ports
  • Wireless mouse & keyboard
  • Metal shield enclosure and movable stand with external START, PAUSE, STOP and Estop

☑ Licensed Software

  • Windows 7 32bit
  • Mach3 CNC software
  • Sheetcam CAM software

☑ For Wood Routing

  • Router 1400W
  • Vacuum pipes to Dust collector
  • Router Mounting Bracket with dust adapter port
  • MDF T-slot table top and clamps

Optional Xtras

☒ Not included in the price

  • Spindle Water cooled
    (Aprox R18000)
  • Dust collector: available from Adendorf
    (Aprox R5500)
